TNJ-5数字瓶盖扭力测试仪
查看多图

TNJ-5数字瓶盖扭力测试仪

仪器编号: TNJ-5
仪器品牌: 日本新宝SHIMPO
计量单位:
商品简介:
市场价格: 16000.00
会员价格: 16000.00
可得积分: 0
顾客评分: 共有0条评分 | 登录评论商品
购买 收藏

TNJ-5数字瓶盖扭力测试仪的性能:

  1. 自动关机(放置10分钟后自动关闭(OFF))
  2. 存储数据功能(可记录100个扭矩值、具有存储、浏览、部分删除、全部删除功能。)
  3. 可计算最大值(MAX)、最小值(MIN)、平均值(AVE)。
  4. 自动删除扭矩值功能(用开关可调节自动复位所需的时间)
  5. 自动归零(可自动回到零表示)
  6. 可设定扭矩值。并可用蜂鸣器提示作业者。

TNJ-5数字瓶盖扭力测试仪的技术参数:

型号 TNJ-2 TNJ-5 TNJ-10
测量扭矩 2N.m 5N.m 10N.m
测量范围 0.000±2.000N.m 0.000±5.000N.m 0.00±10.00N.m
测量单位 N.m(N・cm、kgf・cm、lb・in)
过负载保护
夹具范围 Φ10~Φ180mm
过负载保护 LCD的副显示部位显示"OVR",LED闪亮
显示 主显示部 4位LCD显示 文字高12mm
副显示部 3位LCD显示 文字高7mm
比对LED
精度 ±0.5%/F.S.
测量模式 开启模式 开启时的最大値显示(峰值显示):显示测量台上的最大值
关闭模式 关闭时的最大値显示(峰值显示):显示测量台上的最大值
平均模式 实时显示(平均值显示):实时显示计测台上的扭矩
显示周期 0.125秒(8次/秒)、0.25秒(4次/秒)、0.5秒(2次/秒)、1秒(1次/秒)中选择。峰值显示以0.125秒
取样周期 1msec(1000次/秒)
存储 存储数据数
统计处理
数据输出 无
比对输出
模拟输出
电脑软件
附件 AC电源适配器
电源 AC电源适配器(AC230V)
外型尺寸(MM) 320×220×121
重量 8~10kg
使用环境 0~40℃

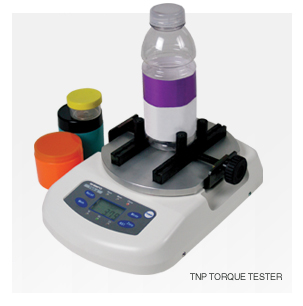

TNP Torque Meter

The new Shimpo TNP torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for large batch testing to ensure overall product quality.

The TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.

The TNP is a portable device powered with internal rechargeable batteries or thru an AC adapter/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.

DIGITORQ: Torque Analyzer Software for the TNP (digital torque meter) provides true distribution graph display, (Great for SPC applications!)
1,000 data point storage, (Avg., Max, Min) and recall of all data along with "HI-LO" comparator features.....

Features Benefits
High Accuracy ± 0.5% F.S.
Wide Torque Range 2Nm, 5Nm and 10Nm models
Adjustable Sample Size Quick and easy set-up takes seconds

Test Memory One touch operation, retains up to 1000 measurements
Variable Units of Measures Displays Torque values in, lb./in., Lbin, Kgcm and Nm, Ncm
Large Digital Display Easy to read L.C.D.
PC Output USB interface with add in software (Digitorq)
Flexible Power Rechargeable NiMH batteries and / or Universal AC adapter
Selectable Measuring Modes Captures Peak Opening, Closing and Average torque values (CCW, CW)
Portable Small foot print, compact, space saver design
