手持式多用微欧表 METRAHit 27M的产品简介 »
＊显示分辨率可达1μΩ 内置存储器和红外接口
＊手持式数字多用毫欧表
＊多用表功能
＊显示分辨率可达1μΩ
＊可四线制测量电阻
＊内置存储器和红外接口
＊多显示液晶式显示屏
＊数据采集功能
＊可选配软件方便生成文件进行分析和存储 METRAHit 27M Milliohmmeter METRAHit 27M
Milliohmmeter, Multimeter and Data Logger, Temperature Meter

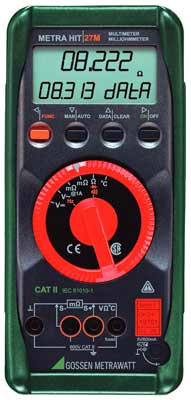

The MetraHit 27M is a rugged, reliable and compact milliohmmeter, multimeter and a temperature measuring instrument too.
It is very well suited for on-site service, as well as for a wide variety of laboratory tasks.
Applications apart from general low-ohmig measurements:
- measuring low value contact resistances at welding seams and riveted joints
- determination of low-resistance transitions at outer skins of aercraft (lightning protection, wicktest), and for general low-resistance measurements.
- Milliohmmeter
3.000 mOhm to 300.00 mOhm with 1 A measuring current and
30.00 mOhm to 30.00 Ohm with 200 mA measuring current - Kelvin connection (4-wire measurement)
- Resistance measurement from 300 Ohm to 30 MOhm
- Voltage measurement from 3 to 600 V DC and 3 to 600 V AC
with ±30,000 digits - Frequency measurement from 300 Hz to 3 kHz
- DATA hold memory for up to 1200 measured values
- Continuity and diode testing
- Overload protection
- CSA Certification
- DKD calibration certificate as standard feature
| Typ | 27M | 27I | 27AS Avionik Set |
| Article Number | M227A | M227B | M227C |
| Standard Equipment | |||
| Measuring unit METRAHit | 27M | 27I | 27I |
| 3x size AA rechargeable NiMH batteries | • | • | • |
| NA4/500 mains adapter | • | • | |
| KC4 Kelvin-Clip (pcs.) | 1 | 2 | |
| KC27 Kelvin probe (pcs.) | 2 | ||
| BD-Pack (including BD232, cable with METRAwin10) and METRAwin90-2 software | • | ||
| HC30 hard case | • | ||
| KS17S measurement cable set | • | • | • |
| Operating instructions | • | • | • |
| Short-form operating instructions | • | • | • |
| GH18 protective rubber cover with carrying strap | • | • | • |
| DKD calibration certificate | • | • | • |
